QTLP690C - SURFACE MOUNT LED LAMP SUPER BRIGHT 0402

Datasheet Summary

Description

Extremely thin and compact, the 0402 chip LED is ideal for compact products.

Ultra-miniature footprint, low profile and wide viewing angle make QTLP690C a perfect candidate for backlighting cell phone key pads.

Features

  • Ultra-miniature - 1.0(L) X 0.5(W) X 0.45(H) mm.
  • AllnGaP technology for -R, -E, -O, -Y and -AG.
  • Wide viewing angle of 100°.
  • Water clear optics.
  • Moisture-proof packaging.
  • Available in 0.315” (8mm) width tape on 7” (178mm) diameter reel; 2,000 units per reel  2001 Fairchild Semiconductor Corporation DS300396 8/31/01 1 OF 6 www. fairchildsemi. com.

📥 Download Datasheet

Datasheet preview – QTLP690C

Datasheet Details

Part number QTLP690C
Manufacturer Fairchild Semiconductor
File Size 131.14 KB
Description SURFACE MOUNT LED LAMP SUPER BRIGHT 0402
Datasheet download datasheet QTLP690C Datasheet
Additional preview pages of the QTLP690C datasheet.

📁 Similar Datasheet

  • QTLP670C-2 - SMT LED LAMP PLCC-2 PACKAGE (QT Optoelectronics)
  • QTLP670C-3 - SMT LED LAMP PLCC-2 PACKAGE (QT Optoelectronics)
  • QTLP670C-4 - SMT LED LAMP PLCC-2 PACKAGE (QT Optoelectronics)
  • QTLP670C-7 - SMT LED LAMP PLCC-2 PACKAGE (QT Optoelectronics)
  • QTLP282-2 - SURFACE MOUNT LED LAMP FLAT TYPE (QT Optoelectronics)
  • QTLP282-3 - SURFACE MOUNT LED LAMP FLAT TYPE (QT Optoelectronics)
  • QTLP282-4 - SURFACE MOUNT LED LAMP FLAT TYPE (QT Optoelectronics)
  • QTLP282-7 - SURFACE MOUNT LED LAMP FLAT TYPE (QT Optoelectronics)
  • QTLP912-2 - SUBMINIATURE T-3/4 (1.9 mm) SOLID STATE LAMPS (QT Optoelectronics)
  • QTLP912-3 - SUBMINIATURE T-3/4 (1.9 mm) SOLID STATE LAMPS (QT Optoelectronics)
Other Datasheets by Fairchild Semiconductor
  • QTLP690C-AG - SURFACE MOUNT LED LAMP SUPER BRIGHT 0402
  • QTLP690C-E - SURFACE MOUNT LED LAMP SUPER BRIGHT 0402
  • QTLP690C-O - SURFACE MOUNT LED LAMP SUPER BRIGHT 0402
  • QTLP690C-R - SURFACE MOUNT LED LAMP SUPER BRIGHT 0402
  • QTLP690C-Y - SURFACE MOUNT LED LAMP SUPER BRIGHT 0402
  • QTLP600C - SURFACE MOUNT LED LAMP STANDARD BRIGHT 0606
  • QTLP600C-24 - SURFACE MOUNT LED LAMP STANDARD BRIGHT 0606
  • QTLP600C-34 - SURFACE MOUNT LED LAMP STANDARD BRIGHT 0606

Full PDF Text Transcription

Click to expand full text

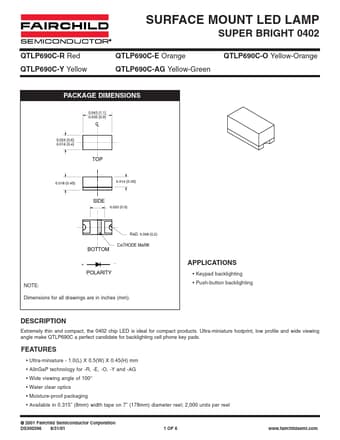

SURFACE MOUNT LED LAMP SUPER BRIGHT 0402 QTLP690C-R Red QTLP690C-Y Yellow QTLP690C-E Orange QTLP690C-AG Yellow-Green QTLP690C-O Yellow-Orange PACKAGE DIMENSIONS 0.043 (1.1) 0.035 (0.9) C L 0.024 (0.6) 0.016 (0.4) TOP 0.018 (0.45) 0.014 (0.35) SIDE 0.020 (0.5) RAD. 0.008 (0.2) BOTTOM + _ CATHODE MARK APPLICATIONS • Keypad backlighting • Push-button backlighting POLARITY NOTE: Dimensions for all drawings are in inches (mm). DESCRIPTION Extremely thin and compact, the 0402 chip LED is ideal for compact products. Ultra-miniature footprint, low profile and wide viewing angle make QTLP690C a perfect candidate for backlighting cell phone key pads. FEATURES • Ultra-miniature - 1.0(L) X 0.5(W) X 0.
