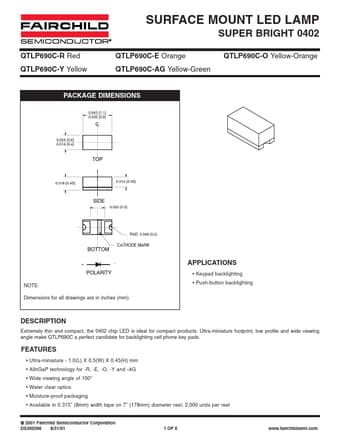

QTLP690C-O Datasheet, 0402, Fairchild Semiconductor

QTLP690C-O Features

• 0402
• Ultra-miniature - 1.0(L) X 0.5(W) X 0.45(H) mm
• AllnGaP technology for -R, -E, -O, -Y and -AG
• Wide viewing angle of 100°
• Water clear optics
<

PDF File Details

Part number:

QTLP690C-O

Manufacturer:

Fairchild Semiconductor

File Size:

131.14kb

Download:

📄 Datasheet

Description:

Surface mount led lamp super bright 0402. Extremely thin and compact, the 0402 chip LED is ideal for compact products. Ultra-miniature footprint, low profile and wide viewing

QTLP690C-O Application

• Applications
• Keypad backlighting
• Push-button backlighting POLARITY NOTE: Dimensions for all drawings are in inches (mm). DESCR
