QVE00118 PHOTOTRANSITOR OPTICAL INTERRUPTER SWITCH

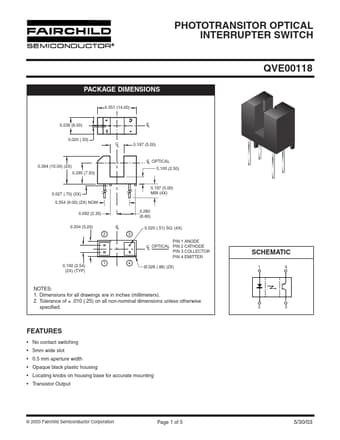

PHOTOTRANSITOR OPTICAL INTERRUPTER SWITCH QVE00118 PACKAGE DIMENSIONS 0.551 (14.00) 0.236 (6.00) C L 0.020 (.50) C L 0.197 (5.00) 0.394 (10.00) (2X) 0.295 (7.50) C L OPTICAL 0.100 (2.50) 0.027 (.70) (2X) 0.354 (9.00) (2X) NOM 0.092 (2.35) 0.204 (5.20) 2 C L 3 0.260 (6.60) 0.197 (5.00) MIN (4X) 0.020 (.51) SQ. (4X) PIN 1 ANODE OPTICAL PIN 2 CATHODE C L PIN 3 COLLECTOR PIN 4 EMITTER SCHEMATIC 1 4 0.100 (2.54) (2X) (TYP) 1 4 Ø.026 (.66) (2X) NOTES: 1. Dimensions for all drawings are in.

QVE00118 Features

* No contact switching

* 5mm wide slot

* 0.5 mm aperture width

* Opaque black plastic housing

* Locating knobs on housing base for accurate mounting

* Transistor Output © 2003 Fairchild Semiconductor Corporation Page 1 of 5 5/30/03 PHOTOTRANSITOR O
