QVE00832 Datasheet - Fairchild Semiconductor

QVE00832, PHOTOTRANSISTOR OPTICAL INTERRUPTER SWITCH

PHOTOTRANSISTOR OPTICAL INTERRUPTER SWITCH QVE00832 PACKAGE DIMENSIONS 0.551 (14.00) + D 0.236 (6.00) E + C L 0.020 (.50) C L 0.197 (5.00) 0.394 .

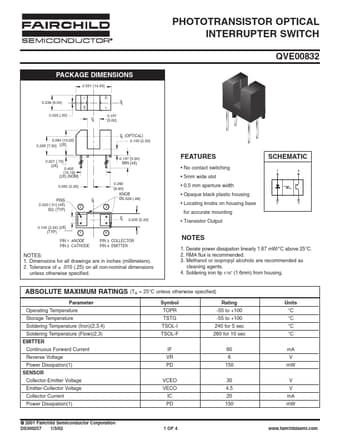

datasheet Preview Page 1 from Datasheet4u.com

QVE00832_FairchildSemiconductor.pdf

QVE00832 Datasheet Preview — Preview of QVE00832 PDF

Datasheet Details

Part number:

QVE00832

Manufacturer:

Fairchild Semiconductor

File Size:

72.24 KB

Description:

PHOTOTRANSISTOR OPTICAL INTERRUPTER SWITCH

Features

* No contact switching
* 5mm wide slot SCHEMATIC 1 4 0.400 (10.16) (2X) (NOM) 0.260 (6.60) C L 2 3 0.092 (2.35)
* 0.5 mm aperture width
* Opaque black plastic housing
* Locating knobs on housing base for accurate mounting 2 3 PINS 0.020 (.51) (4X) SQ. (TY
