RC5054

Programmable Synchronous DC-DC Converter Controller for Low Voltage Microprocessors

RC5054 Features

* Drives Two N-Channel MOSFETs

* Operates from +5V Power Input

* Simple Single-Loop Control Design - Voltage-Mode PWM Control

* Fast Transient Response - High-Bandwidth Error Amplifier - Full 0% to 100% Duty Ratio

* Excellent Output Voltage Regulation

RC5054 General Description

The RC5054A provides complete control and protection for a DC-DC converter optimized for high-performance microprocessor applications. It is designed to drive two N-Channel MOSFETs in a synchronous-rectified buck topology. The RC5054A integrates all of the control, output adjustment, monitoring and p.

RC5054 Datasheet (122.46 KB)

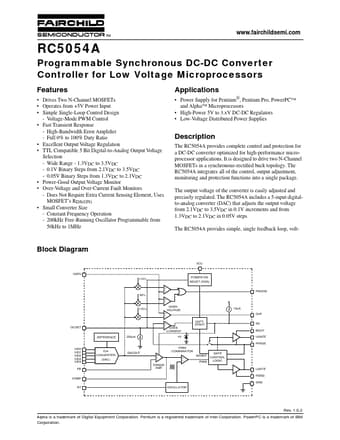

Preview of RC5054 PDF

Datasheet Details

Part number:

RC5054

Manufacturer:

Fairchild Semiconductor

File Size:

122.46 KB

Description:

Programmable synchronous dc-dc converter controller for low voltage microprocessors.
