RC5057

High Performance Programmable Synchronous DC-DC Controller for Low Voltage Microprocessors

RC5057 Features

* Programmable output from 1.3V to 3.5V using an integrated 5-bit DAC

* Remote sense

* Active Droop

* 85% efficiency typical at full load

* Integrated Power Good and Enable/Soft Start functions

* Drives N-channel MOSFETs

* Overcurrent protectio

RC5057 Datasheet (177.66 KB)

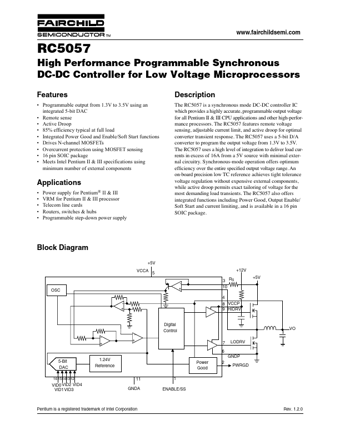

Preview of RC5057 PDF

Datasheet Details

Part number:

RC5057

Manufacturer:

Fairchild Semiconductor

File Size:

177.66 KB

Description:

High performance programmable synchronous dc-dc controller for low voltage microprocessors.
