S1K - General-Purpose Rectifiers

Fairchild Semiconductor

The S1K by Fairchild Semiconductor is a General-Purpose Rectifiers. Below is the official datasheet preview.

📥 Download Datasheet

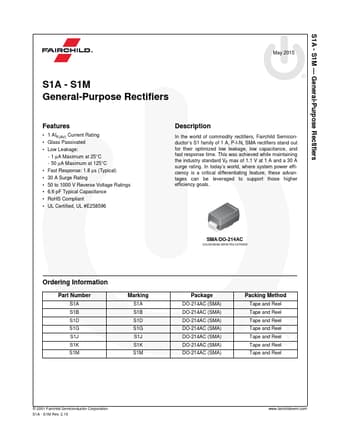

S1K General-Purpose Rectifiers by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **S1K** General-Purpose Rectifiers datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	S1K
Manufacturer	Fairchild Semiconductor
File Size	171.30 KB
Description	General-Purpose Rectifiers
Datasheet	S1K-FairchildSemiconductor.pdf
Additional preview pages of the S1K datasheet.

S1K Product details

Description

In the world of commodity rectifiers, Fairchild Semiconductor’s S1 family of 1 A, P-I-N, SMA rectifiers stand out for their optimized low leakage, low capacitance, and fast response time.

Features

1 AIF(AV) Current Rating.
Glass Passivated.
Low Leakage: - 1 μA Maximum at 25°C - 50 μA Maximum at 125°C.
Fast Response: 1.8 μs (Typical).
30 A Surge Rating.
50 to 1000 V Reverse Voltage Ratings.
6.6 pF Typical Capacitance.
RoHS Compliant.
UL Certified, UL #E258596.
