SA5.0A Datasheet - Fairchild Semiconductor

SA5.0A, Transient Voltage Supressors

SA5.0(C)A - SA170(C)A SA5.0(C)A - SA170(C)A .

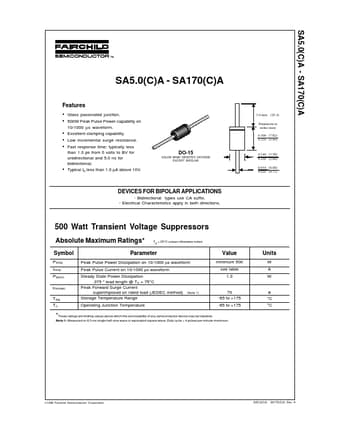

datasheet Preview Page 1 from Datasheet4u.com

SA5.0A-FairchildSemiconductor.pdf

SA5.0A Datasheet Preview — Preview of SA5.0A PDF

Datasheet Details

Part number:

SA5.0A

Manufacturer:

Fairchild Semiconductor

File Size:

55.32 KB

Description:

Transient Voltage Supressors

Features

* Glass passivated junction.
* 500W Peak Pulse Power capability on 10/1000 µs waveform.
* Excellent clamping capability.
* Low incremental surge resistance.
* Fast response time; typically less than 1.0 ps from 0 volts to BV for unidirectional and 5.0 ns for b

Applications

* - Bidirectional types use CA suffix. - Electrical Characteristics apply in both directions. 1.0 min (25.4) Dimensions in inches (mm) 0.300 (7.62) 0.230 (5.84) 0.140 (3.56) 0.104 (2.64) 0.034 (0.86) 0.028 (0.71) 500 Watt Transient Voltage Suppressors Absolute Maximum Ratings
* TA = 25°C unless
