SG6846 - Highly Integrated Green-Mode PWM Controller

Datasheet Summary

Description

The highly integrated SG6846 series of PWM controllers provides several

Features

  • Low Startup Current: 8µA.
  • Low Operating Current: 3.7mA.
  • Peak-Current Mode of Operation with Cycle-by- Cycle Current Limiting.
  • PWM Frequency Continuously Decreasing with Burst Mode at Light Loads.
  • VDD Over-Voltage Protection (OVP).
  • AC Input Brownout Protection with Hysteresis.
  • Constant Output-Power Limit (Full AC Input Range).
  • Internal Latch Circuit for OVP, OTP, and OCP.
  • Two-level Over-Current Protection (OCP) with 96ms Delay Time.
  • Very Few Exte.

📥 Download Datasheet

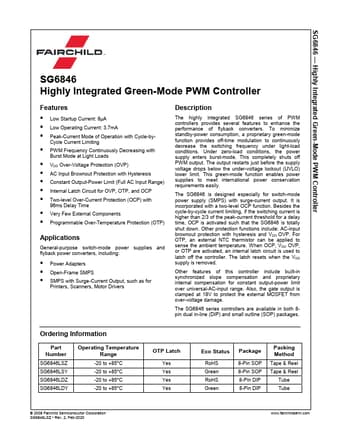

Datasheet preview – SG6846

Datasheet Details

Part number SG6846
Manufacturer Fairchild Semiconductor
File Size 1.62 MB
Description Highly Integrated Green-Mode PWM Controller
Datasheet download datasheet SG6846 Datasheet
Additional preview pages of the SG6846 datasheet.
