SS29

Schottky Rectifier

SS29 Features

* Glass-Passivated Junctions

* High-Current Capability, Low VF Applications

* Low Voltage

* High-Frequency Inverters

* Free Wheeling

* Polarity Protection October 2013 Description The SS22-S210 series includes high-efficiency, low power loss, general-

SS29 General Description

The SS22-S210 series includes high-efficiency, low power loss, general-propose Schottky rectifiers. The clipbonded leg structure provides high thermal performance and low electrical resistance. These rectifier are suited for free wheeling, secondary rectification, and reverse polarity protection app.

SS29 Datasheet (289.91 KB)

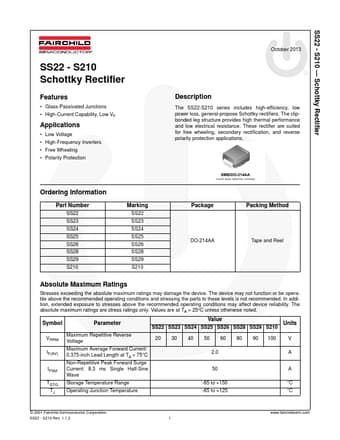

Preview of SS29 PDF

Datasheet Details

Part number:

SS29

Manufacturer:

Fairchild Semiconductor

File Size:

289.91 KB

Description:

Schottky rectifier.
