SS29BF, SS28BF Schottky Barrier Rectifiers

SS29BF Description

Schottky Barrier Rectifiers Production specification SS28BF *SS210BF .

SS29BF Features

* Metal silicon junction, majority carrier conduction
* High surge capability
* High temperature soldering guaranteed: 260°C/10 seconds
* High current capability, low forward voltage drop
* RoHS Compliant Mechanical Data
* Case: SMBF molded plastic
* Molding compound, UL

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS29BF, SS28BF. Please refer to the document for exact specifications by model.

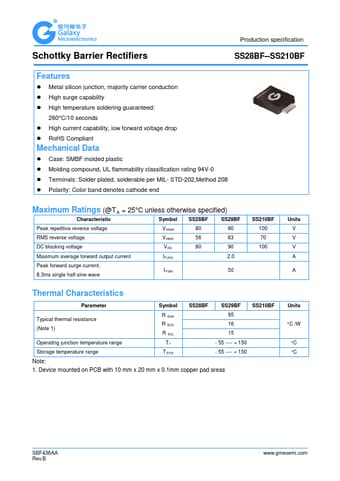

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS29BF, SS28BF
Manufacturer
GME
File Size
433.63 KB
Datasheet
SS28BF-GME.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SS29BF, SS28BF.
Please refer to the document for exact specifications by model.
