SS29FA

The SS29FA is Surface Mount Schottky Barrier Rectifiers designed by Fairchild Semiconductor.

Product Overview

Fairchild Semiconductor

📥 Download Datasheet

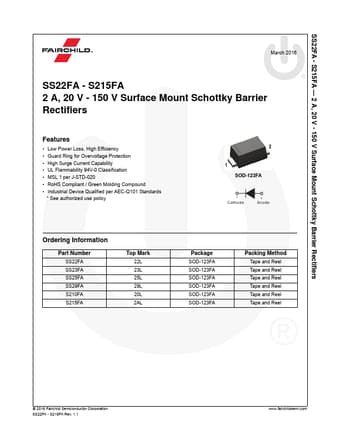

SS29FA Surface Mount Schottky Barrier Rectifiers by Fairchild Semiconductor - Datasheet Preview — Datasheet preview – SS29FA

Datasheet Details

Part number	SS29FA, SS22FA
Manufacturer	Fairchild Semiconductor
File Size	205.53 KB
Description	Surface Mount Schottky Barrier Rectifiers
Datasheet	SS22FA-FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: SS29FA, SS22FA. Please refer to the document for exact specifications by model.
Additional preview pages of the SS29FA datasheet.

Product details

Features

Low Power Loss, High Efficiency.
Guard Ring for Overvoltage Protection.
High Surge Current Capability.
UL Flammability 94V-0 Classification.
MSL 1 per J-STD-020.
RoHS Compliant / Green Molding Compound.
Industrial Device Qualified per AEC-Q101 Standards.
See authorized use policy 2 1 SOD-123FA 1 Cathode 2 Anode Ordering Information Part Number SS22FA SS23FA SS25FA SS29FA S210FA S215FA Top Mark 22L 23L 25L 29L 20L 2AL Pack.
