TMC22053A - Multistandard Digital Video Decoder

This page provides the datasheet information for the TMC22053A, a member of the TMC22051A Multistandard Digital Video Decoder family.

Description

The TMC22x5yA family of Digital Video Decoders offers unprecedented, broadcast-quality video processing performance in a single chip.

Features

  • Very high performance, low cost.
  • Adaptive comb-based decoding.
  • Multiple pin-compatible versions - 3-line, 2-line, and band-split - 8- and 10-bit processing.
  • Internal digital linestores.
  • Supports NTSC/PAL field and NTSC frame based decoding.
  • Multiple input formats - CCIR-601/624 (D1), D2, CVBS, YC.
  • Multiple output formats - CCIR-601/624 (D1), RGB, YCBCR.
  • 10-18 Mpps data rate.
  • Parallel and serial control interface.

📥 Download Datasheet

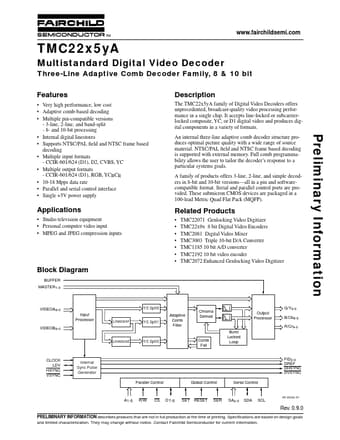

Datasheet preview – TMC22053A
