TO-251 Package Dimensions

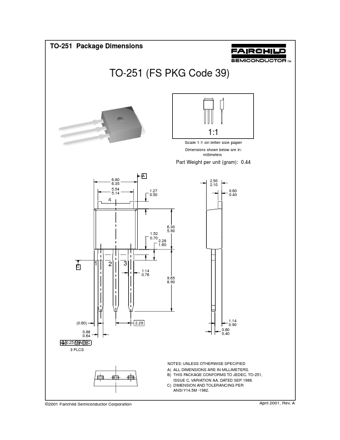

TO-251 Package Dimensions TO-251 (FS PKG Code 39) 1:1 Scale 1:1 on letter size paper Dimensions shown below are in: millimeters Part Weight per unit (gram): 0.44 A 6.80 6.35 5.54 5.14 1.27 0.50 2.50 2.10 0.60 0.40 6.30 5.90 1.52 0.70 2.28 1.60 C 12 3 1.14 0.76 9.65 8.90 (0.60) 0.88 0.64 0.25 M A M C 3 PLCS 2.29 ©2001 Fairchild Semiconductor Corporation 1.14 0.90 0.60 0.40 NOTES: UNLESS OTHERWISE SPECIFIED A) ALL DIMENSIONS ARE IN MILLIMETERS. B) THIS PACKAGE CONFORMS TO JEDEC, TO-251.

TO-251 Datasheet (18.87 KB)

TO-251 Datasheet Preview — Preview of TO-251 PDF

Datasheet Details

Part number:

TO-251

Manufacturer:

Fairchild Semiconductor

File Size:

18.87 KB

Description:

Package dimensions.
