TO-92L FS PKG CODE AS

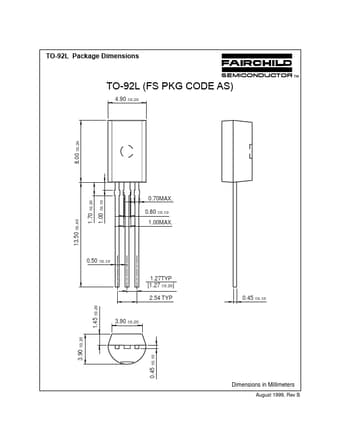

www.DataSheet4U.com TO-92L Package Dimensions TO-92L (FS PKG CODE AS) 4.90 ±0.20 8.00 ±0.20 1.70 ±0.20 1.00 ±0.10 0.70MAX. 0.80 ±0.10 1.00MAX. 13.50 ±0.40 0.50 ±0.10 1.27TYP [1.27 ±0.20] 2.54 TYP 1.45 ±0.20 0.45 ±0.10 3.90 ±0.20 3.90 ±0.20 0.45 ±0.10 Dimensions in Millimeters August 1999, Rev B .

TO-92L_FairchildSemiconductor.pdf

TO-92L Datasheet Preview — Preview of TO-92L PDF

Datasheet Details

Part number:

TO-92L

Manufacturer:

Fairchild Semiconductor

File Size:

67.05 KB

Description:

Fs pkg code as.
