US1FFA - Super Fast Surface Mount Rectifiers

Product Overview

Fairchild Semiconductor

📥 Download Datasheet

US1FFA Super Fast Surface Mount Rectifiers by Fairchild Semiconductor - Datasheet Preview — Datasheet preview – US1FFA

Datasheet Details

Part number	US1FFA
Manufacturer	Fairchild Semiconductor
File Size	197.46 KB
Description	Super Fast Surface Mount Rectifiers
Datasheet	US1FFA Datasheet
Note	This datasheet PDF includes multiple part numbers: US1FFA, US1AFA. Please refer to the document for exact specifications by model.

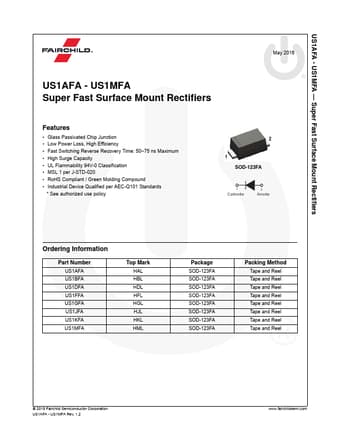

Additional preview pages of the US1FFA datasheet.

Product details

Features

Glass Passivated Chip Junction.
Low Power Loss, High Efficiency.
Fast Switching Reverse Recovery Time: 50~75 ns Maximum.
High Surge Capacity.
UL Flammability 94V-0 Classification.
MSL 1 per J-STD-020.
RoHS Compliant / Green Molding Compound.
Industrial Device Qualified per AEC-Q101 Standards.
See authorized use policy 2 1 SOD-123FA 1 Cathode 2 Anode Ordering Information Part Number US1AFA US1BFA US1DFA US1FFA US1GF.
