US1KFA, US1AFA - Super Fast Surface Mount Rectifiers

Fairchild Semiconductor

📥 Download Datasheet

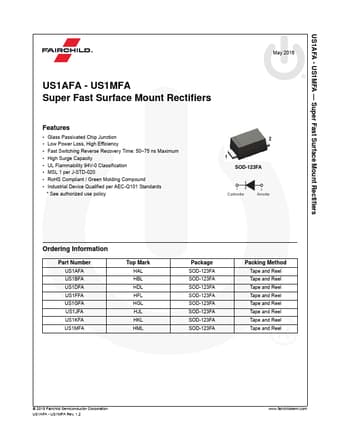

US1KFA Datasheet Preview — This datasheet PDF includes multiple part numbers: US1KFA, US1AFA. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	US1KFA, US1AFA
Manufacturer	Fairchild ↗ Semiconductor
File Size	197.46 KB
Description	Super Fast Surface Mount Rectifiers
Datasheet	US1AFA-FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: US1KFA, US1AFA. Please refer to the document for exact specifications by model.

US1KFA Product details

Features

Glass Passivated Chip Junction.
Low Power Loss, High Efficiency.
Fast Switching Reverse Recovery Time: 50~75 ns Maximum.
High Surge Capacity.
UL Flammability 94V-0 Classification.
MSL 1 per J-STD-020.
RoHS Compliant / Green Molding Compound.
Industrial Device Qualified per AEC-Q101 Standards.
See authorized use policy 2 1 SOD-123FA 1 Cathode 2 Anode Ordering Information Part Number US1AFA US1BFA US1DFA US1FFA US1GF.
