US1KF, US1AF - Surface Mount Super Fast Recover Rectifiers

📥 Download Datasheet

US1KF Datasheet Preview — This datasheet PDF includes multiple part numbers: US1KF, US1AF. Please refer to the document for exact specifications by model.

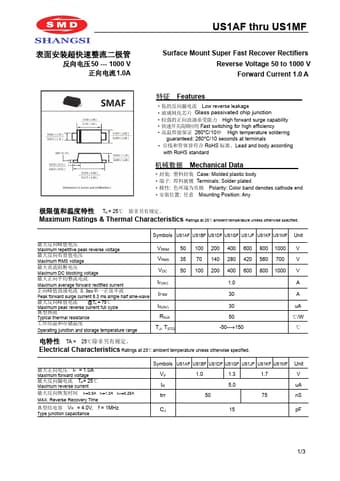

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	US1KF, US1AF
Manufacturer	SMD
File Size	1.21 MB
Description	Surface Mount Super Fast Recover Rectifiers
Datasheet	US1AF-SMD.pdf
Note	This datasheet PDF includes multiple part numbers: US1KF, US1AF. Please refer to the document for exact specifications by model.

US1KF Product details

Features

Low reverse leakage.
Glass passivated chip junction.
High forward surge capability.
Fast switching for high efficiency.
260°C/10 High temperature soldering guaranteed: 260°C/10 seconds at terminals.
RoHS 。Lead and body according with RoHS standard Mechanical Data.
: Case: Molded plastic body.
: Terminals: Solder plated.
: Polarity: Color band denotes cathode end.
: Mounting Position: Any TA = 25℃ 。 Maximum Ratings & Thermal Characteristi.
