US1BF - Surface Mount Super Fast Recover Rectifiers

Product Overview

📥 Download Datasheet

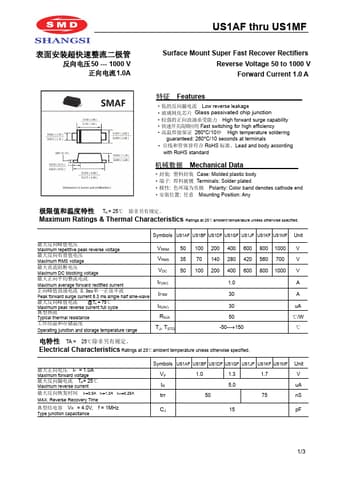

US1BF Surface Mount Super Fast Recover Rectifiers by SMD - Datasheet Preview — Datasheet preview – US1BF

Datasheet Details

Part number	US1BF
Manufacturer	SMD
File Size	1.21 MB
Description	Surface Mount Super Fast Recover Rectifiers
Datasheet	US1BF Datasheet
Note	This datasheet PDF includes multiple part numbers: US1BF, US1AF. Please refer to the document for exact specifications by model.
Additional preview pages of the US1BF datasheet.

Product details

Features

Low reverse leakage.
Glass passivated chip junction.
High forward surge capability.
Fast switching for high efficiency.
260°C/10 High temperature soldering guaranteed: 260°C/10 seconds at terminals.
RoHS 。Lead and body according with RoHS standard Mechanical Data.
: Case: Molded plastic body.
: Terminals: Solder plated.
: Polarity: Color band denotes cathode end.
: Mounting Position: Any TA = 25℃ 。 Maximum Ratings & Thermal Characteristi.
