KA7905A Datasheet, Regulator, Fairchild

KA7905A Features

  • Regulator
  • Output Current in Excess of 1A Output Voltages of -5, -6, -8, -9, -10, -12, -15, -18 , -24V Internal Thermal Overload Protection Short

PDF File Details

Part number:

KA7905A

Manufacturer:

Fairchild

File Size:

121.37kb

Download:

📄 Datasheet

Description:

3-terminal 1a negative voltage regulator. The KA79XX/KA79XXA series of three-terminal negative regulators are available in TO-220 package and with several fixed output voltage

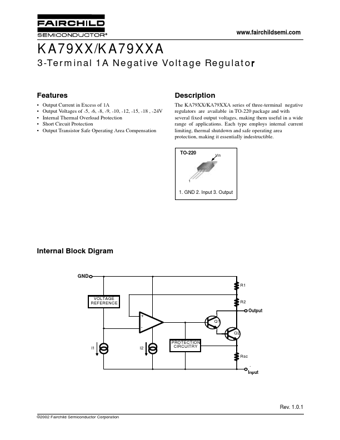

Datasheet Preview: KA7905A 📥 Download PDF (121.37kb)
Page 2 of KA7905A Page 3 of KA7905A

KA7905A Application

  • Applications Each type employs internal current limiting, thermal shutdown and safe operating area protection, making it essentially indestructible
