KA7909

3-Terminal 1A Negative Voltage Regulator

KA7909 Features

* Output Current in Excess of 1 A

* Output Voltages of: -5 V, -6 V, -8 V, -9 V, -12 V, -15 V, -18 V, -24 V

* Internal Thermal Overload Protection

* Short-Circuit Protection

* Output Transistor Safe Operating Area Compensation Description The KA79XX / KA79XXA

KA7909 General Description

The KA79XX / KA79XXA / LM79XX series of three-terminal negative regulators are available in a TO-220 package with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shutdown, and safe operating area protection. TO-.

KA7909 Datasheet (218.97 KB)

Preview of KA7909 PDF

Datasheet Details

Part number:

KA7909

Manufacturer:

Fairchild

File Size:

218.97 KB

Description:

3-terminal 1a negative voltage regulator.
KA79XX / KA79XXA / LM79XX

* 3-Terminal 1 A Negative Voltage Regulator KA79XX / KA79XXA / LM79XX 3-Terminal 1 A Negative Voltage Regulator Se.

📁 Related Datasheet

KA7905 - 3-Terminal 1A Negative Voltage Regulator (Fairchild)
KA79XX / KA79XXA / LM79XX — 3-Terminal 1 A Negative Voltage Regulator KA79XX / KA79XXA / LM79XX 3-Terminal 1 A Negative Voltage Regulator September .

KA7905A - 3-Terminal 1A Negative Voltage Regulator (Fairchild)
.fairchildsemi. KA79XX/KA79XXA 3-Terminal 1A Negative Voltage Regulator r Features • • • • • Output Current in Excess of 1A Output Voltages of.

KA7906 - 3-Terminal 1A Negative Voltage Regulator (Fairchild)
KA79XX / KA79XXA / LM79XX — 3-Terminal 1 A Negative Voltage Regulator KA79XX / KA79XXA / LM79XX 3-Terminal 1 A Negative Voltage Regulator September .

KA7908 - 3-Terminal 1A Negative Voltage Regulator (Fairchild)
KA79XX / KA79XXA / LM79XX — 3-Terminal 1 A Negative Voltage Regulator KA79XX / KA79XXA / LM79XX 3-Terminal 1 A Negative Voltage Regulator September .

KA7910 - 3-Terminal 1A Negative Voltage Regulator (Fairchild)
.fairchildsemi. KA79XX/KA79XXA 3-Terminal 1A Negative Voltage Regulator r Features • • • • • Output Current in Excess of 1A Output Voltages of.

KA7912 - 3-Terminal 1A Negative Voltage Regulator (Fairchild)
KA79XX / KA79XXA / LM79XX — 3-Terminal 1 A Negative Voltage Regulator KA79XX / KA79XXA / LM79XX 3-Terminal 1 A Negative Voltage Regulator September .

KA7912A - 3-Terminal 1A Negative Voltage Regulator (Fairchild)
KA79XX / KA79XXA / LM79XX — 3-Terminal 1 A Negative Voltage Regulator KA79XX / KA79XXA / LM79XX 3-Terminal 1 A Negative Voltage Regulator September .

KA7915 - 3-Terminal 1A Negative Voltage Regulator (Fairchild)
KA79XX / KA79XXA / LM79XX — 3-Terminal 1 A Negative Voltage Regulator KA79XX / KA79XXA / LM79XX 3-Terminal 1 A Negative Voltage Regulator September .

TAGS

KA7909 3-Terminal Negative Voltage Regulator Fairchild

Image Gallery

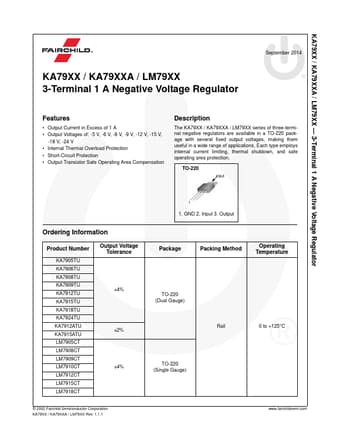

KA7909 Datasheet Preview Page 2 KA7909 Datasheet Preview Page 3
