KA7912A - 3-Terminal 1A Negative Voltage Regulator

Fairchild

📥 Download Datasheet

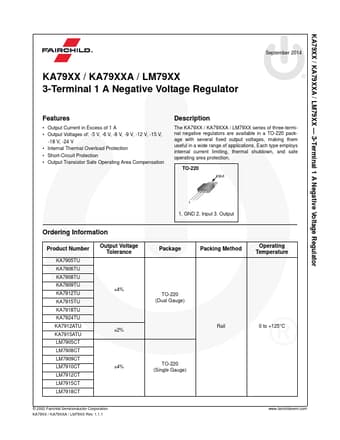

KA7912A Datasheet Preview — Preview of KA7912A PDF

Datasheet Details

Part number: KA7912A
Manufacturer: Fairchild
File Size: 227.10 KB
Datasheet: KA7912A_FairchildSemiconductor.pdf
Description: 3-Terminal 1A Negative Voltage Regulator

KA7912A Product details

Description

The KA79XX / KA79XXA / LM79XX series of three-terminal negative regulators are available in a TO-220 package with several fixed output voltages, making them useful in a wide range of applications.

Features

Output Current in Excess of 1 A.
Output Voltages of: -5 V, -6 V, -8 V, -9 V, -12 V, -15 V, -18 V, -24 V.
Internal Thermal Overload Protection.
Short-Circuit Protection.
Output Transistor Safe Operating Area Compensation.
