KA7915 - 3-Terminal 1A Negative Voltage Regulator

Fairchild

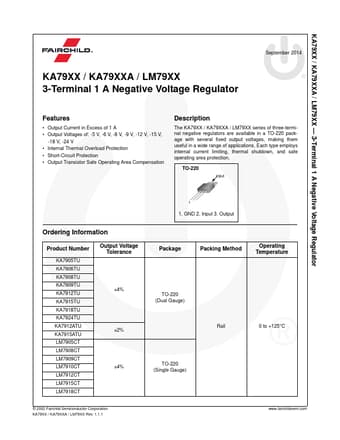

KA7915 Datasheet Preview — Preview of KA7915 PDF

Datasheet Details

Part number	KA7915
Manufacturer	Fairchild
File Size	218.97 KB
Description	3-Terminal 1A Negative Voltage Regulator
Datasheet	KA7915_FairchildSemiconductor.pdf

KA7915 Product details

Description

The KA79XX / KA79XXA / LM79XX series of three-terminal negative regulators are available in a TO-220 package with several fixed output voltages, making them useful in a wide range of applications.

Features

Output Current in Excess of 1 A.
Output Voltages of: -5 V, -6 V, -8 V, -9 V, -12 V, -15 V, -18 V, -24 V.
Internal Thermal Overload Protection.
Short-Circuit Protection.
Output Transistor Safe Operating Area Compensation.
