KA8301

Bi-Directional DC Motor Driver

KA8301 Features

* Built-in brake function.

* Built-in element to absorb a surge current derived from changing motor direction and braking motor drive.

* External motor speed control pin

* Motor direction change circuit.

* Interfaces with CMOS devices. Description The KA8301

KA8301 General Description

The KA8301 is a monolithic integrated circuit designed for driving bi-directional DC motor with braking and speed control, and it is suitable for the loading motor driver of VCR systems. The speed control can be achieved by adjusting the external voltage of the speed control pin. 10-SIPH-B Typical.

KA8301 Datasheet (393.22 KB)

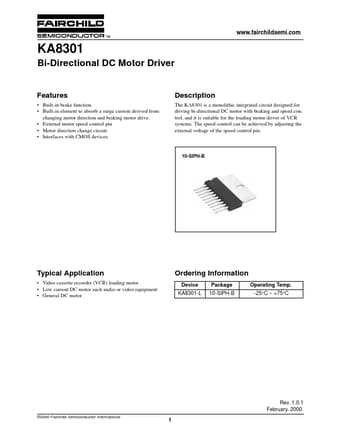

Preview of KA8301 PDF

Datasheet Details

Part number:

KA8301

Manufacturer:

Fairchild

File Size:

393.22 KB

Description:

Bi-directional dc motor driver.
