MAN6410 - 0.560-INCH SEVEN SEGMENT DISPLAYS

MAN6410 Description

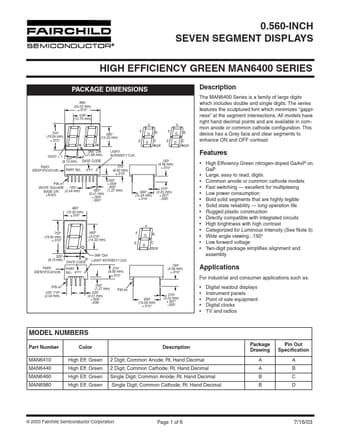

0.560-INCH SEVEN SEGMENT DISPLAYS HIGH EFFICIENCY GREEN MAN6400 SERIES PACKAGE DIMENSIONS .985" (25.02 mm) ±.010" .500" (12.70 mm) A .750" (19.05 mm) .
The MAN6400 Series is a family of large digits which includes double and single digits.

MAN6410 Features

* the sculptured font which minimizes “gappiness” at the segment intersections. All models have right hand decimal points and are available in common anode or common cathode configuration. This device has a Grey face and clear segments to enhance ON and OFF contrast. DIGIT = 1 PART IDENTIFICATION .32

MAN6410 Applications

* For industrial and consumer applications such as:
* Digital readout displays Instrument panels Point of sale equipment Digital clocks TV and radios PIN #1 .100" TYP (2.54 mm) PIN #5 .600" (15.24 mm) +.015" .010" (0.25 mm) +.007" -.000" MODEL NUMBERS
