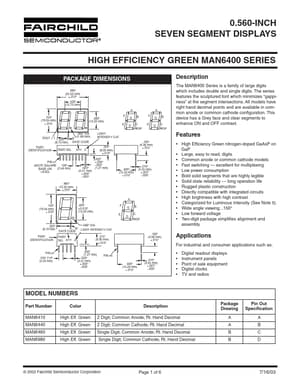

MAN6440 0.560-INCH SEVEN SEGMENT DISPLAYS

0.560-INCH SEVEN SEGMENT DISPLAYS HIGH EFFICIENCY GREEN MAN6400 SERIES PACKAGE DIMENSIONS .985" (25.02 mm) ±.010" .500" (12.70 mm) A .750" (19.05 mm) .
The MAN6400 Series is a family of large digits which includes double and single digits.

MAN6440_FairchildSemiconductor.pdf

MAN6440 Datasheet Preview — Preview of MAN6440 PDF

Datasheet Details

Part number:

MAN6440

Manufacturer:

Fairchild

File Size:

452.97 KB

Description:

0.560-INCH SEVEN SEGMENT DISPLAYS

Features

* the sculptured font which minimizes “gappiness” at the segment intersections. All models have right hand decimal points and are available in common anode or common cathode conﬁguration. This device has a Grey face and clear segments to enhance ON and OFF contrast. DIGIT = 1 PART IDENTIFICATION .32

Applications

* For industrial and consumer applications such as:
* Digital readout displays Instrument panels Point of sale equipment Digital clocks TV and radios PIN #1 .100" TYP (2.54 mm) PIN #5 .600" (15.24 mm) +.015" .010" (0.25 mm) +.007" -.000" MODEL NUMBERS
