MC7905

3-Terminal 1A Negative Voltage Regulator

MC7905 Features

* Output Current in Excess of 1A

* Output Voltages of -5, -6, -8 , -9, -10, -12, -15, -18 and 24V

* Internal Thermal Overload Protection

* Short Circuit Protection

* Output Transistor Safe Operating Area Compensation Description The MC79XX / MC79XXA/ LM79XX s

MC7905 General Description

The MC79XX / MC79XXA/ LM79XX series of three terminal negative regulators are available in TO-220 package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, mak.

MC7905 Datasheet (117.77 KB)

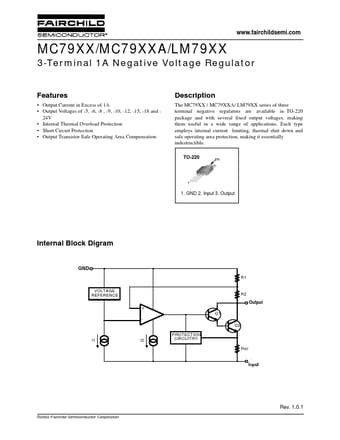

Preview of MC7905 PDF

Datasheet Details

Part number:

MC7905

Manufacturer:

Fairchild

File Size:

117.77 KB

Description:

3-terminal 1a negative voltage regulator.
