MC7905A, 3-Terminal 1A Negative Voltage Regulator

www.fairchildsemi.com MC79XX/MC79XXA/LM79XX 3-Terminal 1A Negative Voltage Regulator .
The MC79XX / MC79XXA/ LM79XX series of three terminal negative regulators are available in TO-220 package and with several fixed output voltages, maki.

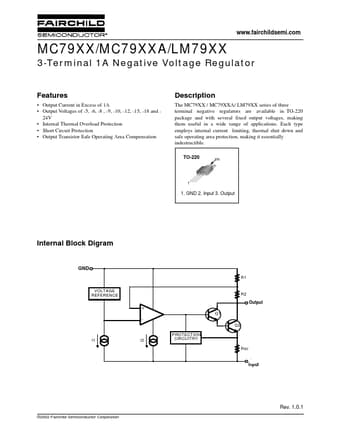

datasheet Preview Page 1 from Datasheet4u.com

MC7905A_FairchildSemiconductor.pdf

MC7905A Datasheet Preview — Preview of MC7905A PDF

Datasheet Details

Part number:

MC7905A

Manufacturer:

Fairchild

File Size:

117.77 KB

Description:

3-Terminal 1A Negative Voltage Regulator

Features

* Output Current in Excess of 1A
* Output Voltages of -5, -6, -8 , -9, -10, -12, -15, -18 and 24V
* Internal Thermal Overload Protection
* Short Circuit Protection

Applications

* Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. TO-220 Vin 1 1. GND 2. Input 3. Output Internal Block Digram GND R1 VOLTAGE REFERENCE R2 Output Out + Q1 Q2 PROTECTION CIRCUITRY Rsc I1 I2 Input In R
