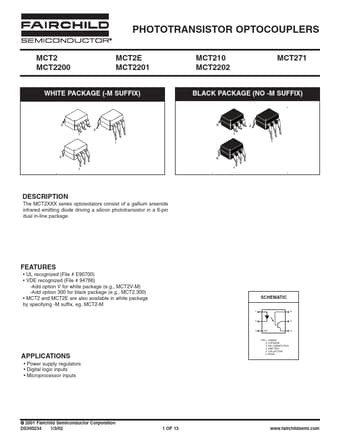

MCT2202 Datasheet, Optocouplers, Fairchild

MCT2202 Features

• Optocouplers
• UL recognized (File # E90700)
• VDE recognized (File # 94766) -Add option V for white package (e.g., MCT2V-M) -Add option 300 for black package (e.g., MCT2.300)
<

PDF File Details

Part number:

MCT2202

Manufacturer:

Fairchild

File Size:

253.46kb

Download:

📄 Datasheet

Description:

Phototransistor optocouplers. The MCT2XXX series optoisolators consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin d

MCT2202 Application

• Applications
• Power supply regulators
• Digital logic inputs
• Microprocessor inputs PIN 1. ANODE 2. CATHODE 3. NO CONNECT
