MCT2E PHOTOTRANSISTOR OPTOCOUPLERS

Fairchild

Description

PHOTOTRANSISTOR OPTOCOUPLERS MCT2 MCT2200 MCT2E MCT2201 MCT210 MCT2202 MCT271 WHITE PACKAGE (-M SUFFIX) BLACK PACKAGE (NO -M SUFFIX) 6 6 1 1 6 1 .
The MCT2XXX series optoisolators consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line packa.

📥 Download Datasheet

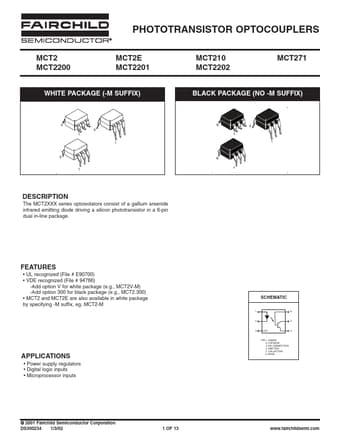

MCT2E Datasheet Preview — Preview of MCT2E PDF

Datasheet Specifications

Part number: MCT2E
Manufacturer: Fairchild
File Size: 253.46 KB
Datasheet: MCT2E_FairchildSemiconductor.pdf
Description: PHOTOTRANSISTOR OPTOCOUPLERS

Features

* UL recognized (File # E90700)
* VDE recognized (File # 94766) -Add option V for white package (e. g. , MCT2V-M) -Add option 300 for black package (e. g. , MCT2.300)
* MCT2 and MCT2E are also available in white package by specifying -M suffix, eg. MCT2-M 1 SCHEMATIC 6 2 5 3

Applications

* Power supply regulators
* Digital logic inputs
* Microprocessor inputs PIN 1. ANODE 2. CATHODE 3. NO CONNECTION 4. EMITTER 5. COLLECTOR 6. BASE  2001 Fairchild Semiconductor Corporation DS300234 1/3/02 1 OF 13 www. fairchildsemi. com PHOTOTRANSISTOR OPTOCOUPLERS MCT2 MC
