ML2021 - Telephone Line Equalizer

Datasheet Summary

Description

The ML2021 is a monolithic analog line equalizer for telephone applications.

The ML2021 consists of a switched capacitor filter that realizes a family of frequency response curves optimized for telephone line equalization while minimizing group delay.

Features

  • Slope, height, and bandwidth adjustable Optimized group delays (500 Hz to 6.4 kHz) On chip anti-alias filter Bypass mode Low supply current 6 mA typical from ±5V supplies TTL / CMOS compatible interface Double buffered data latch Selectable master clock 1.544 or 1.536 MHz Synchronous or asynchronous data loading capability Compatible with ML2003 and ML2004 logarithmic gain/attenuator General Descr.

📥 Download Datasheet

Datasheet preview – ML2021

Datasheet Details

Part number ML2021
Manufacturer Fairchild
File Size 93.79 KB
Description Telephone Line Equalizer
Datasheet download datasheet ML2021 Datasheet
Additional preview pages of the ML2021 datasheet.

📁 Similar Datasheet

  • ML2021 - TELEPHONE LINE EQUALIZER (Micro Linear)
  • ML2020 - TELEPHONE LINE EQUALIZER (Micro Linear)
  • ML2002 - Static/Half Duty LCD COG Driver (MINILOGIC)
  • ML2003 - Logarithmic Gain/Attenuator (Micro Linear)
  • ML2008 - uP Compatible Logarithmic Gain/Attenuator (Micro Linear)
  • ML2009 - uP Compatible Logarithmic Gain/Attenuator (Micro Linear)
  • ML2011 - GSM SINGLE-CHIP BASEBAND PROCESSOR (ETC)
  • ML2016 - Lithium Manganese Dioxide Rechargeable Batteries (maxell)
  • ML2016 - Lithium Manganese Dioxide Rechargeable Batteries (Maxell)
  • ML2031 - TONE DETECTOR (Micro Linear)
Other Datasheets by Fairchild
  • ML2003 - Logarithmic Gain/Attenuator
  • ML2004 - Logarithmic Gain/Attenuator
  • ML2035 - Serial Input Programmable Sine Wave Generator
  • ML2036 - Serial Input Programmable Sine Wave Generator with Digital Gain Control

Full PDF Text Transcription

Click to expand full text

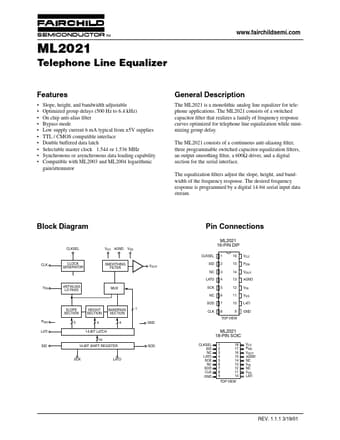

www.fairchildsemi.com ML2021 Telephone Line Equalizer Features • • • • • • • • • • Slope, height, and bandwidth adjustable Optimized group delays (500 Hz to 6.4 kHz) On chip anti-alias filter Bypass mode Low supply current 6 mA typical from ±5V supplies TTL / CMOS compatible interface Double buffered data latch Selectable master clock 1.544 or 1.536 MHz Synchronous or asynchronous data loading capability Compatible with ML2003 and ML2004 logarithmic gain/attenuator General Description The ML2021 is a monolithic analog line equalizer for telephone applications. The ML2021 consists of a switched capacitor filter that realizes a family of frequency response curves optimized for telephone line equalization while minimizing group delay.
