ML2035 - Serial Input Programmable Sine Wave Generator

ML2035 Description

February 1997 ML2035 Serial Input Programmable Sine Wave Generator GENERAL .
The ML2035 is a monolithic sinewave generator whose output is programmable from DC to 25kHz.

ML2035 Features

* s s s Programmable output frequency - DC to 25kHz Low gain error and total harmonic distortion 3-wire SPI compatible serial microprocessor interface with double buffered data latch Fully integrated solution - no external components required Frequency resolution of 1.5Hz (± 0.75Hz) with a 12MHz cloc

📥 Download Datasheet

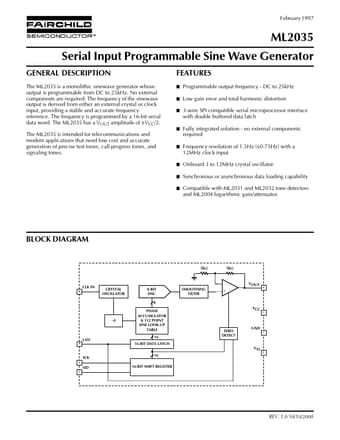

Preview of ML2035 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ML2035
Manufacturer
Fairchild
File Size
168.57 KB
Datasheet
ML2035_FairchildSemiconductor.pdf
Description
Serial Input Programmable Sine Wave Generator
