ML2037 - 500kHz / Serial Input / Programmable Sine Wave Generator with Digital Gain Control

Datasheet Summary

Description

The ML2037 is a precision programmable sine wave generator with a frequency range of DC to 500kHz.

The device is capable of generating a wide frequency range of low distortion sine waves with no external passive components.

Features

  • s Programmable output frequency: DC to 400kHz.
  • using a crystal DC to 500kHz.
  • using an external digital clock 3-wire SPI compatible serial interface with double buffered latch for programming the frequency Digital gain control for programming output amplitude SYNC input for synchronization of multiple sine waves Shutdown pin for sleep mode Single 5V power supply operation s s s s s.
  • This Part Is End Of Life As Of August 1, 2000 BLOCK.

📥 Download Datasheet

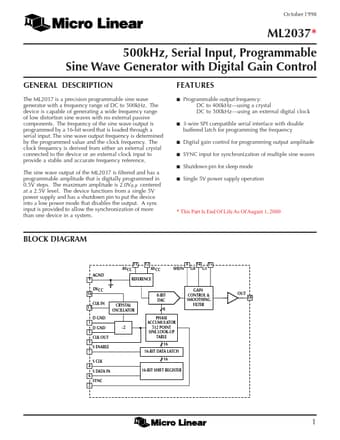

Datasheet preview – ML2037

Datasheet Details

Part number ML2037
Manufacturer Micro Linear
File Size 208.65 KB
Description 500kHz / Serial Input / Programmable Sine Wave Generator with Digital Gain Control
Datasheet download datasheet ML2037 Datasheet
Additional preview pages of the ML2037 datasheet.

📁 Similar Datasheet

  • ML2032 - Lithium Manganese Dioxide Rechargeable Batteries (Maxell)
  • ML2035 - Serial Input Programmable Sine Wave Generator (Fairchild)
  • ML2036 - Serial Input Programmable Sine Wave Generator with Digital Gain Control (Fairchild)
  • ML20391 - Leaded Resistor (KOA)
  • ML2002 - Static/Half Duty LCD COG Driver (MINILOGIC)
  • ML2003 - Logarithmic Gain/Attenuator (Fairchild)
  • ML2004 - Logarithmic Gain/Attenuator (Fairchild)
  • ML2011 - GSM SINGLE-CHIP BASEBAND PROCESSOR (ETC)
  • ML2016 - Lithium Manganese Dioxide Rechargeable Batteries (maxell)
  • ML2016 - Lithium Manganese Dioxide Rechargeable Batteries (Maxell)
Other Datasheets by Micro Linear
  • ML2031 - TONE DETECTOR
  • ML2032 - TONE DETECTOR
  • ML2035 - Serial Input Programmable Sine Wave Generator
  • ML2036 - Serial Input Programmable Sine Wave Generator with Digital Gain Control
  • ML2039 - Serial Input Programmable Sine Wave Generator
  • ML2003 - Logarithmic Gain/Attenuator
  • ML2008 - uP Compatible Logarithmic Gain/Attenuator
  • ML2009 - uP Compatible Logarithmic Gain/Attenuator

Full PDF Text Transcription

Click to expand full text
October 1998 ML2037* 500kHz, Serial Input, Programmable Sine Wave Generator with Digital Gain Control GENERAL DESCRIPTION The ML2037 is a precision programmable sine wave generator with a frequency range of DC to 500kHz. The device is capable of generating a wide frequency range of low distortion sine waves with no external passive components. The frequency of the sine wave output is programmed by a 16-bit word that is loaded through a serial input. The sine wave output frequency is determined by the programmed value and the clock frequency. The clock frequency is derived from either an external crystal connected to the device or an external clock input to provide a stable and accurate frequency reference.
