ML6426 High Bandwidth Triple Video Filters with Buffered Outputs for RGB or YUV

The ML6426 are a family of triple video filters with buffered outputs. There are several versions of the ML6426, each with different passband cut-off frequencies of 6.7MHz, 12MHz, 15MHz, 24MHz, 30MHz, 36MHz, and 48MHz. Each channel contains a 4th-order Butterworth lowpass reconstruction video filter.

ML6426 Features

* I I 5V ±10% operation RGB/YUV filters for ATSC Digital Television VESA Standard 2:1 Mux Inputs for multiple RGB/YUV inputs Triple Reconstruction Filter options for 6.7, 12, 15, 24, 30, 36, and 48MHz to handle various line rates Multiple ML6426 outputs can be paralleled to drive RGB/YUV outputs at d

ML6426_FairchildSemiconductor.pdf

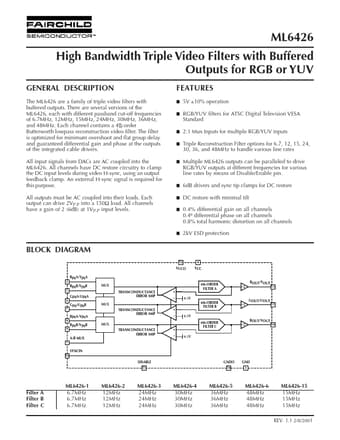

ML6426 Datasheet Preview — Preview of ML6426 PDF

Datasheet Details

Part number:

ML6426

Manufacturer:

Fairchild

File Size:

157.96 KB

Description:

High bandwidth triple video filters with buffered outputs for rgb or yuv.
