ML6416

S-Video Filter with Summed Composite Output / Sound Trap / and Group Delay Compensation

ML6416 Features

* 7.1MHz Y and C filters, with CV out 14dB notch at 4.5MHz for sound trap 42dB stopband attenuation at 27MHz on Y, C, and CV Better than 1dB flatness to 4.5 MHz on Y, C, and CV RF Modulator outp

ML6416 General Description

The ML6416 is a dual Y/C 4th-order Butterworth lowpass video filter optimized for minimum overshoot and flat group delay. The device also contains a summing circuit to generate filtered composite video, an audio trap and group delay compensation circuit to notch-out audio, providing an area for the add.

ML6416 Datasheet (318.64 KB)

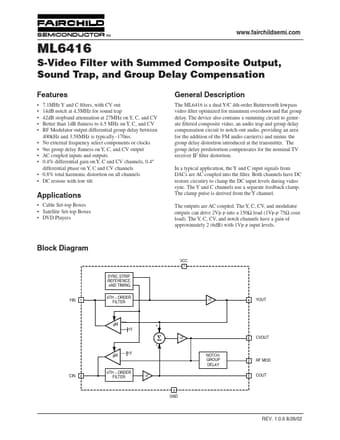

Preview of ML6416 PDF

Datasheet Details

Part number:

ML6416

Manufacturer:

Fairchild

File Size:

318.64 KB

Description:

S-video filter with summed composite output / sound trap / and group delay compensation.
