ML64168

4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver

ML64168 Features

* ∙ Processing speed Minimum instruction execution time : 4.3 µs @700 kHz 91.6 µs @32.768 kHz ∙ Clock generation circuit Low-speed clock : 32.768 kHz crystal oscillator High-speed clock : 700 kHz RC oscillator ( with an external resistor ) CPU clock is selectable as Low-speed clock / High-speed clock

ML64168 General Description

This version: Sep. 27,1999 Previous version: Jun. 22,1999 4-Bit Microcontroller with Built-in RC Oscillation Type A/D Converter and LCD Driver The ML64168 is a low power 4-bit microcontroller incorporating the Oki's original CPU core nX-4/30. The ML64168 provides a minimum instruction execution t.

ML64168 Datasheet (317.23 KB)

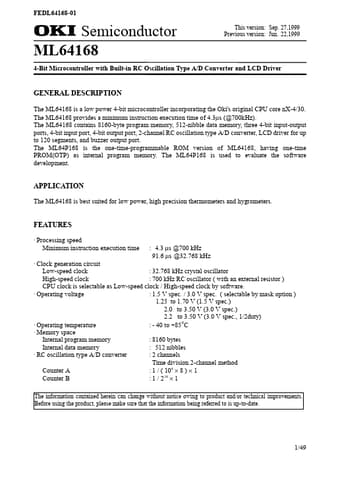

Preview of ML64168 PDF

Datasheet Details

Part number:

ML64168

Manufacturer:

OKI electronic componets

File Size:

317.23 KB

Description:

4-bit microcontroller with built-in rc oscillation type a/d converter and lcd driver.
