MM74HC240

Inverting Octal 3-STATE Buffer

MM74HC240 Features

* s Typical propagation delay: 12 ns s 3-STATE outputs for connection to system buses s Wide power supply range: 2

* 6V s Low quiescent supply current: 80 µA (74 Series) s Output current: 6 mA Ordering Code: Order Number MM74HC240WM MM74HC240SJ MM74HC240MTC MM74HC240N Package Number M20B M20D M

MM74HC240 General Description

The MM74HC240 3-STATE buffer utilizes advanced silicon-gate CMOS technology. It possesses high drive current outputs which enable high speed operation even when driving large bus capacitances. These circuits achieve speeds comparable to low power Schottky devices, while retaining the advantage of CM.

MM74HC240 Datasheet (89.45 KB)

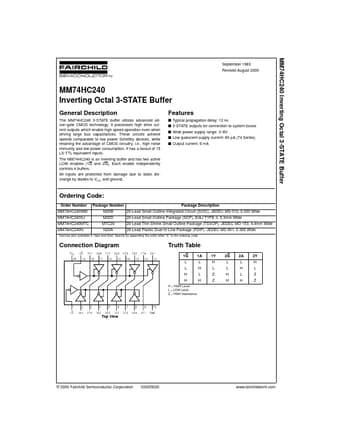

Preview of MM74HC240 PDF

Datasheet Details

Part number:

MM74HC240

Manufacturer:

Fairchild

File Size:

89.45 KB

Description:

Inverting octal 3-state buffer.
