MM74HC273 - Octal D-Type Flip-Flops

Datasheet Summary

Description

The MM74HC273 edge triggered flip-flops utilize advanced silicon-gate CMOS technology to implement D-type flipflops.

They possess high noise immunity, low power, and speeds comparable to low power Schottky TTL circuits.

Features

  • s Typical propagation delay: 18 ns s Wide operating voltage range s Low input current: 1 PA maximum s Low quiescent current: 80 PA (74 Series) s Output drive: 10 LS-TTL loads Ordering Code: Order Number Package Number Package.

📥 Download Datasheet

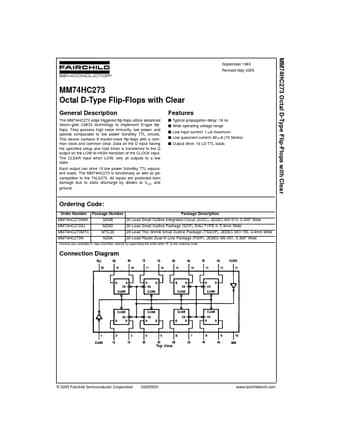

Datasheet preview – MM74HC273

Datasheet Details

Part number MM74HC273
Manufacturer Fairchild
File Size 131.42 KB
Description Octal D-Type Flip-Flops
Datasheet download datasheet MM74HC273 Datasheet
Additional preview pages of the MM74HC273 datasheet.

📁 Similar Datasheet

  • MM74HC244 - Octal 3-STATE Buffer (ON Semiconductor)
  • MM74HC245A - Octal TRI-STATE Transceiver (National)
  • MM74HC299 - 8-Bit TRI-STATE Universal Shift Register (National)
  • MM74HC00 - Quad 2-Input NAND Gate (ON Semiconductor)
  • MM74HC00 - Quad 2-Input NAND Gate (National Semiconductor)
  • MM74HC02 - Quad 2-Input NOR Gate (ON Semiconductor)
  • MM74HC04 - Hex Inverter (ON Semiconductor)
  • MM74HC08 - Quad 2-Input AND Gate (ON Semiconductor)
  • MM74HC11 - Triple 3-Input AND Gate (National)
  • MM74HC112 - Dual J-K Flip-Flop (National Semiconductor)
Other Datasheets by Fairchild

Full PDF Text Transcription

Click to expand full text
MM74HC273 Octal D-Type Flip-Flops with Clear September 1983 Revised May 2005 MM74HC273 Octal D-Type Flip-Flops with Clear General Description The MM74HC273 edge triggered flip-flops utilize advanced silicon-gate CMOS technology to implement D-type flipflops. They possess high noise immunity, low power, and speeds comparable to low power Schottky TTL circuits. This device contains 8 master-slave flip-flops with a common clock and common clear. Data on the D input having the specified setup and hold times is transferred to the Q output on the LOW-to-HIGH transition of the CLOCK input. The CLEAR input when LOW, sets all outputs to a low state. Each output can drive 10 low power Schottky TTL equivalent loads. The MM74HC273 is functionally as well as pin compatible to the 74LS273.
