MM74HCT04

Hex Inverter

MM74HCT04 Features

* low power dissipation and fast switching times. All inputs are protected from static discharge by internal diodes to VCC and ground. MM74HCT devices are intended to interface between TTL and NMOS components and standard CMOS devices. These parts are also plug-in replacements for LS-TTL devices and c

MM74HCT04 General Description

The MM74HCT04 is a logic function fabricated by using advanced silicon-gate CMOS technology which provides the inherent benefits of CMOS - low quiescent power and wide power supply range. This device is input and output characteristic as well as pin-out compatible with standard 74LS logic families. .

MM74HCT04 Datasheet (78.65 KB)

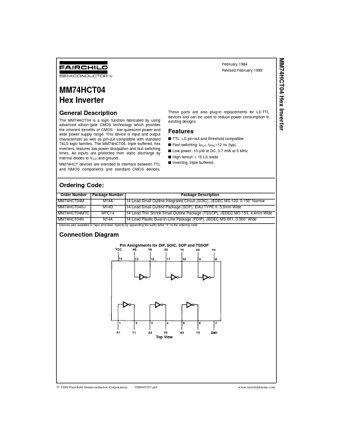

Preview of MM74HCT04 PDF

Datasheet Details

Part number:

MM74HCT04

Manufacturer:

Fairchild

File Size:

78.65 KB

Description:

Hex inverter.
