MM74HCT08

Quad 2-Input AND Gate

MM74HCT08 Features

* s TTL, LS pin-out and threshold compatible s Fast switching: tPLH , tPHL = 12 ns (typ) s Low power: 10 µW at DC s High fan-out, 10 LS-TTL loads Ordering Code: Order Number MM74HCT08M MM74HCT08SJ MM74HCT08MTC MM74HCT08N Package Number M14A M14D MTC14 N14A Package Description 14-Lead Small Outline In

MM74HCT08 General Description

The MM74HCT08 is a logic function fabricated by using advanced silicon-gate CMOS technology which provides the inherent benefits of CMOS

*low quiescent power and wide power supply range. This device is input and output characteristic and pinout compatible with standard 74LS logic families. Al.

MM74HCT08 Datasheet (79.53 KB)

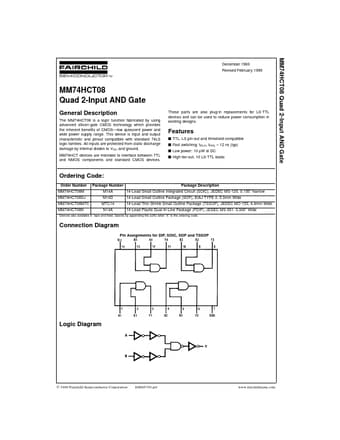

Preview of MM74HCT08 PDF

Datasheet Details

Part number:

MM74HCT08

Manufacturer:

Fairchild

File Size:

79.53 KB

Description:

Quad 2-input and gate.
