MMBD701 Datasheet - Fairchild

MMBD701 - Schottky Barrier Diode

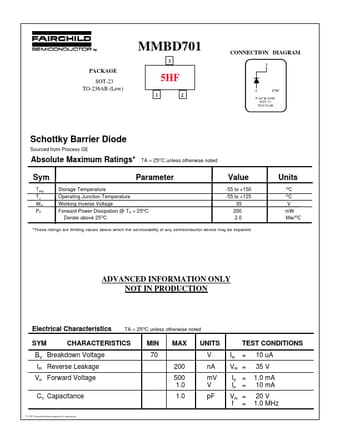

MMBD701 3 CONNECTION DIAGRAM 3 PACKAGE SOT-23 TO-236AB (Low) 1 5HF 1 2 NC SOT-23 TO236AB 2 PACKAGE Schottky Barrier Diode Sourced from Process GE Absolute Maximum Ratings Sym Tstg TJ Wiv PF TA = 25OC unless otherwise noted Parameter Storage Temperature Operating Junction Temperature Working Inverse Voltage Forward Power Dissipation @ TA = 25OC Derate above 25OC Value -55 to +150 -55 to +125 35 200 2.0 Units OC OC V mW Mw/OC These ratings are limiting values above which the

MMBD701_FairchildSemiconductor.pdf

Preview of MMBD701 PDF
MMBD701 Datasheet Preview Page 2 MMBD701 Datasheet Preview Page 3

Datasheet Details

Part number:

MMBD701

Manufacturer:

Fairchild

File Size:

42.02 KB

Description:

Schottky barrier diode.
