* 15 and 13A, 100V. RDS(ON) = 0.12 and 0.15Ω. Critical DC electrical parameters specified at elevated temperature. Rugged internal source-drain diode can eliminate the need for an external Zener diode transient suppressor. 175°C maximum junction temperature rating. High density cell design (3 million/
NDP510B
Fairchild
72.50 KB
N-channel enhancement mode field effect transistor.
May 1994

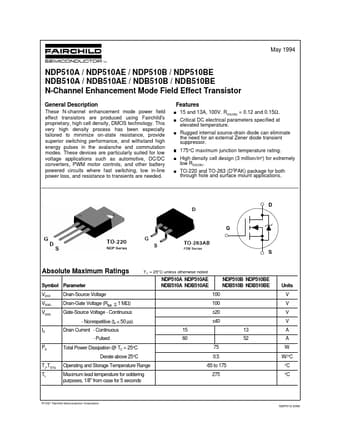

NDP510A / NDP510AE / NDP510B / NDP510BE NDB510A / NDB510AE / NDB510B / NDB510BE N-Channel Enhancement Mode Field Effect Transistor
General D.
