NM93C06 - 256-Bit Serial CMOS EEPROM (MICROWIRE Synchronous Bus)

Fairchild

NM93C06 Description

NM93C06 256-Bit Serial CMOS EEPROM (MICROWIRETM Synchronous Bus) February 2000 NM93C06 256-Bit Serial CMOS EEPROM (MICROWIRE™ Synchronous Bus) Gener.
NM93C06 is a 256-bit CMOS non-volatile EEPROM organized as 16 x 16-bit array.

NM93C06 Features

* MICROWIRE interface which is a 4-wire serial bus with chipselect (CS), clock (SK), data input (DI) and data output (DO) signals. This interface is compatible to many of standard Microcontrollers and Microprocessors. There are 7 instructions implemented on the NM93C06 for various Read, Write, Erase,

📥 Download Datasheet

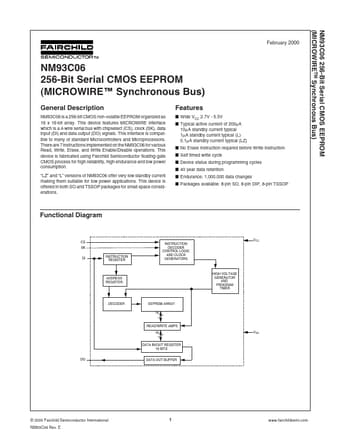

NM93C06 Datasheet Preview — Preview of NM93C06 PDF

Datasheet Details

Part number: NM93C06
Manufacturer: Fairchild
File Size: 107.55 KB
Datasheet: NM93C06_FairchildSemiconductor.pdf
Description: 256-Bit Serial CMOS EEPROM (MICROWIRE Synchronous Bus)
