NM93C56A - 2K-Bit Serial CMOS EEPROM (MICROWIRE Synchronous Bus)

Fairchild

NM93C56A Description

NM93C56A 2K-Bit Serial CMOS EEPROM (MICROWIRETM Synchronous Bus) March 2000 NM93C56A 2K-Bit Serial CMOS EEPROM (MICROWIRE™ Synchronous Bus) General .
NM93C56A is a 2048-bit CMOS non-volatile EEPROM organized as 128 x 16-bit array.

NM93C56A Features

* MICROWIRE interface which is a 4-wire serial bus with chipselect (CS), clock (SK), data input (DI) and data output (DO) signals. This interface is compatible to many of standard Microcontrollers and Microprocessors. This device offers a pin (ORG), using which, the user can select the format of the d

📥 Download Datasheet

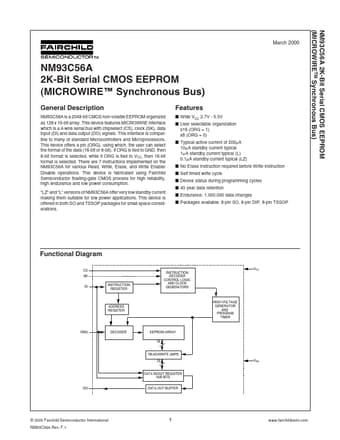

NM93C56A Datasheet Preview — Preview of NM93C56A PDF

Datasheet Details

Part number: NM93C56A
Manufacturer: Fairchild
File Size: 111.22 KB
Datasheet: NM93C56A_FairchildSemiconductor.pdf
Description: 2K-Bit Serial CMOS EEPROM (MICROWIRE Synchronous Bus)
