24C256 Datasheet - FairchildSemiconductor

256K-Bit 2-Wire Bus Interface Serial EEPROM

24C256 Features

* I Extended Operating Voltages

* C256: 4.5V - 5.5V

* C256L: 2.7V - 5.5V

* C256LZ: 2.7V - 5.5V I Low Power CMOS

* 1mA active current typical

* C256/C256L: 10µA standby current typical

* C256LZ: less than 1µA standby current I 2-wire IIC serial interface

24C256 General Description

The FM24C256/C256L/C256LZ devices are 256 Kbits CMOS nonvolatile electrically erasable memory. These devices offer the designer different low voltage and low power options. They conform to all requirements in the Extended IIC 2-wire protocol. Furthermore, they are designed to minimize device pin cou.

24C256 Datasheet (89.12 KB)

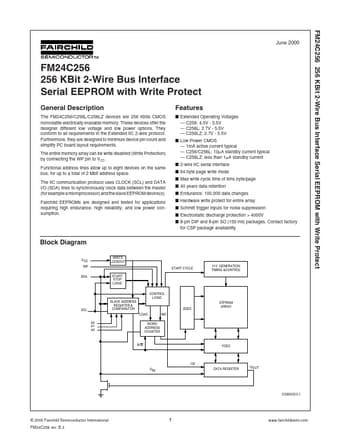

24C256 Datasheet Preview — Preview of 24C256 PDF

Datasheet Details

Part number:

24C256

Manufacturer:

FairchildSemiconductor

File Size:

89.12 KB

Description:

256k-bit 2-wire bus interface serial eeprom.
FM24C256 256 KBit 2-Wire Bus Interface Serial EEPROM with Write Protect June 2000 FM24C256 256 KBit 2-Wire Bus Interface Serial EEPROM with Write Pr.
