24C16 Datasheet - FairchildSemiconductor

16K-Bit Standard 2-Wire Bus Interface Serial EEPROM

24C16 Features

* I Extended operating voltage 2.7V

* 5.5V I 400 KHz clock frequency (F) at 2.7V - 5.5V I 200µA active current typical 10µA standby current typical 1µA standby current typical (L) 0.1µA standby current typical (LZ) I IIC compatible interface

* Provides bi-directional data transfer prot

24C16 General Description

The NM24C16/17 devices are 16,384 bits of CMOS non-volatile electrically erasable memory. These devices conform to all specifications in the Standard IIC 2-wire protocol and are designed to minimize device pin count, and simplify PC board layout requirements. The upper half (upper 8Kbit) of the memo.

24C16 Datasheet (102.73 KB)

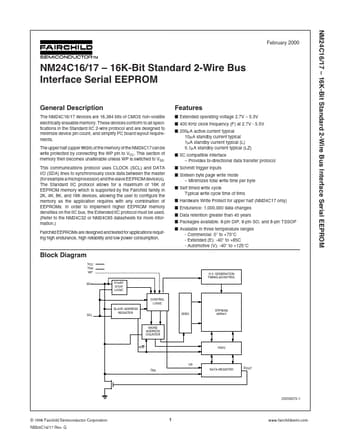

24C16 Datasheet Preview — Preview of 24C16 PDF

Datasheet Details

Part number:

24C16

Manufacturer:

FairchildSemiconductor

File Size:

102.73 KB

Description:

16k-bit standard 2-wire bus interface serial eeprom.
NM24C16/17 16K-Bit Standard 2-Wire Bus Interface Serial EEPROM February 2000 NM24C16/17 16K-Bit Standard 2-Wire Bus Interface Se.
