24C16WP - 16-Kbit serial I2C bus EEPROM

Description

The M24C16 is a 16-Kbit I2C-compatible EEPROM (electrically erasable programmable memory) organized as 2K x 8 bits.

Features

  • Compatible with following I2C bus modes:.
  • 400 kHz.
  • 100 kHz.
  • Memory array:.
  • 16 Kbit (2 Kbyte) of EEPROM.
  • Page size: 16 byte.
  • Single supply voltage:.
  • M24C16-W: 2.5 V to 5.5 V.
  • M24C16-R: 1.8 V to 5.5 V.
  • M24C16-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range).
  • Write time:.
  • Byte write within 5 ms.
  • Page write within 5 ms.
  • Operating temp.

📥 Download Datasheet

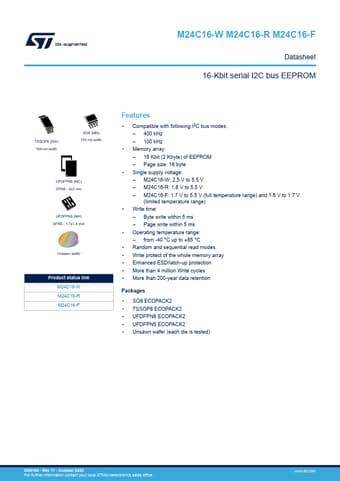

Datasheet preview – 24C16WP

Datasheet Details

Part number 24C16WP
Manufacturer STMicroelectronics
File Size 649.66 KB
Description 16-Kbit serial I2C bus EEPROM
Datasheet download datasheet 24C16WP Datasheet
Additional preview pages of the 24C16WP datasheet.

📁 Similar Datasheet

  • 24C16 - 2-Wire Serial EEPROM (ATMELCorporation)
  • 24C16 - 16K-Bit Standard 2-Wire Bus Interface Serial EEPROM (FairchildSemiconductor)
  • 24C16 - 16K CMOS Serial Electrically Erasable PROM (Microchip Technology)
  • 24C16 - 2-WIRE SERIAL CMOS EEPROM (ISSI)
  • 24C16 - 8-lead SOP and 8-lead TSSOP (Estek Electronics)
  • 24C16 - 16K ELECTRICALLY ERASABLE PROGRAMMABLE ROM (Turbo IC)
  • 24C16 - 2-WIRE SERIAL CMOS EEPROM (Bookly Micro)
  • 24C164 - 2-Wire Serial EEPROM (ATMELCorporation)
  • 24C16A - 2-Wire Serial EEPROM (ATMEL)
  • 24C16B - 8K/16K 5.0V I2C Serial EEPROMs (MicrochipTechnology)
Other Datasheets by STMicroelectronics
  • 24C16 - 16K-bit Serial I2C Bus EEPROM
  • 24C01 - I2C bus EEPROM
  • 24C01B1 - ST24C01B1
  • 24c02 - 1-Kbit and 2-Kbit serial I2C bus EEPROM
  • 24c02WP - 1-Kbit and 2-Kbit serial I2C bus EEPROM
  • 24C04 - 4K-bit Serial I2C Bus EEPROM
  • 24C04WP - 4K-bit Serial I2C Bus EEPROM
  • 24C08 - 8K-bit Serial I2C Bus EEPROM

Full PDF Text Transcription

Click to expand full text
M24C16-W M24C16-R M24C16-F Datasheet 16-Kbit serial I2C bus EEPROM TSSOP8 (DW) 169 mil width SO8 (MN) 150 mil width UFDFPN8 (MC) DFN8 - 2x3 mm UFDFPN5 (MH) DFN5 - 1.7x1.4 mm Unsawn wafer Product status link M24C16-W M24C16-R M24C16-F Features • Compatible with following I2C bus modes: – 400 kHz – 100 kHz • Memory array: – 16 Kbit (2 Kbyte) of EEPROM – Page size: 16 byte • Single supply voltage: – M24C16-W: 2.5 V to 5.5 V – M24C16-R: 1.8 V to 5.5 V – M24C16-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.
