ft2145 - 3.2W Non-Clip Class-D Audio Power Amplifier

Product Overview

Part number	ft2145
Manufacturer	Fangtek
File Size	169.60 KB
Description	3.2W Non-Clip Class-D Audio Power Amplifier
Datasheet	ft2145 Datasheet

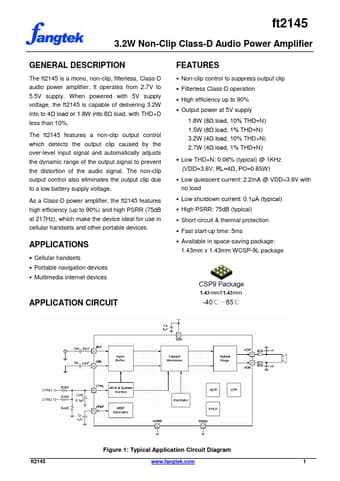

Additional preview pages of the ft2145 datasheet.

The ft2145 is a mono, non-clip, filterless, Class-D audio power amplifier.

a non-clip output control which detects the output clip caused by the over-level input signal and automatically adjusts the dynamic range of the output signal to prevent the distortion of the audio signal. The non-clip output control also eliminates the output clip due to a low battery supply voltage. As a Class-D power amplifier, the ft2145 features high efficiency (up to 90%) and high PSRR (75dB at 217Hz), which make the device ideal for use in cellular handsets and other portable devices. APP.
