ft2705

2 x 10W Class-D Stereo Audio Power Amplifier

ft2705 Features

* ALC to constantly monitor and safeguard the audio outputs against the supply voltage, preventing output clipping distortion, excessive power dissipation, or speaker over-load. Once an over-level condition is detected in either channel, the ALC lowers the voltage gain of both audio amplifiers togethe

ft2705 General Description

The ft2705 is a highly efficient 2X10W Class-D stereo audio power amplifier with automatic level control (ALC). It operates with a wide range of supply voltages from 4.5V to 8.8V in either dual bridge-tied-load (BTL) or parallel bridge-tied-load (PBTL) configuration. With a supply voltage at 8.8V, t.

ft2705 Datasheet (1.02 MB)

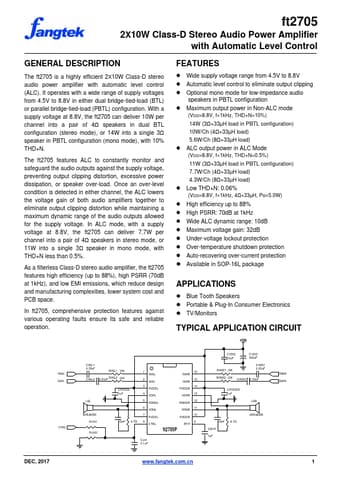

Preview of ft2705 PDF

Datasheet Details

Part number:

ft2705

Manufacturer:

Fangtek

File Size:

1.02 MB

Description:

2 x 10w class-d stereo audio power amplifier.
