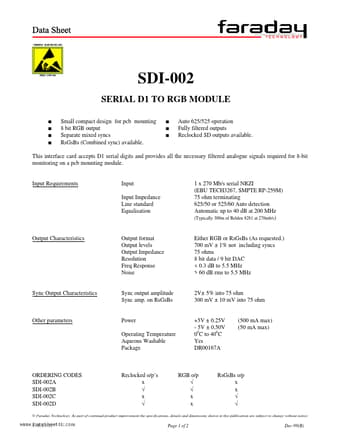

SDI-002 SERIAL D1 TO RGB MODULE

www.DataSheet4U.com SDI-002 SERIAL D1 TO RGB MODULE + + + + Small compact design for pcb mounting 8 bit RGB output Separate mixed syncs RsGsBs (Combined sync) available. + + + Auto 625/525 operation Fully filtered outputs Reclocked SD outputs available. This interface card accepts D1 serial digits and provides all the necessary filtered analogue signals required for 8-bit monitoring on a pcb mounting module. Input Requirements Input Input Impedance Line standard Equalisation 1 x 270 Mb/s se.
